9.0 inch IPS LCD Display
High-performance 9.0 inch IPS LCD display offering excellent viewing angles and color reproduction.
Technical Specifications
| Attribute |
Value |
| Number of pixels |
1280*720 pixels |
| Active Area |
198.912*111.888mm |
| Module Outline |
208.36*125.10*5.49mm |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
85/85/85/85 (Typ) |
| NTSC |
70% (Typ) |
| Aspect Ratio |
16:9 |
| LCM Brightness |
500cd/m² (Typ) 800cd/m² (Typ) |
| Interface |
LVDS |
| Operating Temperature |
-30~+80℃ |
| Storage Temperature |
-30~+85℃ |
9-Inch Beauty Device Display Screen, 1280×720 Resolution with Capacitive Touch Panel (CTP)
9-Inch TFT LCD 1280×720 with CTP – Product Introduction
The JT-9.0IPSTW is a high-brightness IPS TFT LCD display with a resolution of 1280×720 pixels. The module measures 208.36 mm (W) × 125.1 mm (H) × 5.49 mm (D), featuring an active area of 198.912 mm × 111.888 mm and a diagonal size of 9 inches. Utilizing TN technology, this TFT module provides a typical aspect ratio of 16:9 and a wide viewing angle of 85/85/85/85 degrees, offering a cost-effective solution while enhancing the visual experience of end products.
In addition, the JT-9.0IPSTW delivers three key performance characteristics: high brightness (800 cd/m²), high contrast ratio (800:1), and anti-glare treatment. These features ensure improved image legibility under complex lighting conditions, elevating the user experience across various usage environments.
The module is equipped with an LVDS interface. The 9-inch series also supports optional interface configurations including LVDS, MIPI, and RGB, tailored to the customer’s MCU requirements. It is widely applied in instrumentation, beauty devices, GPS equipment, POS terminals, card readers, scanners, home automation, video conferencing systems, analyzers, household appliances, and security systems.
Absolute Maximum Ratings
|
Item
|
Symbol
|
Values |
Unit
|
Remark
|
| Min. |
Max. |
|
Power voltage
|
DVDD |
-0.3 |
5.0 |
V |
|
| AVDD |
-0.5 |
13.5 |
V |
|
| VGH |
13.0 |
19.0 |
V |
|
| VGL |
-12.0 |
-2.0 |
V |
|
| VGH-VGL |
- |
31.0 |
V |
|
|
Operation Temperature Storage Temperature
|
TOP |
-20 |
70 |
℃ |
|
| TST |
-30 |
80 |
℃ |
|
| LED Reverse Voltage |
VR |
- |
1.2 |
V |
Each LED Note 2 |
| LED Forward Current |
IF |
- |
25 |
mA |
Each LED |
Current Consumption
(GND=AVSS=0V)
|
Item
|
Symbol
|
Values |
Unit
|
Remark
|
| Min. |
Typ. |
Max. |
|
Current for Driver
|
IGH |
- |
0.3 |
1 |
mA |
VGH =17.0V |
| IGL |
- |
0.3 |
1 |
mA |
VGL = -5.0V |
| IDVDD |
- |
5.5 |
10 |
mA |
VCC =3.3V |
| IAVDD |
- |
32 |
50 |
mA |
AVDD =10.4V |
Backlight Driving Conditions
|
Item
|
Symbol
|
Values |
Unit
|
| Min. |
Typ. |
Max. |
| Voltage for LED backlight |
VL |
8.4 |
9.3 |
10.2 |
V |
| Current for LED backlight |
IL |
198 |
220 |
242 |
mA |
| LED life time |
- |
30,000 |
- |
- |
Hr |

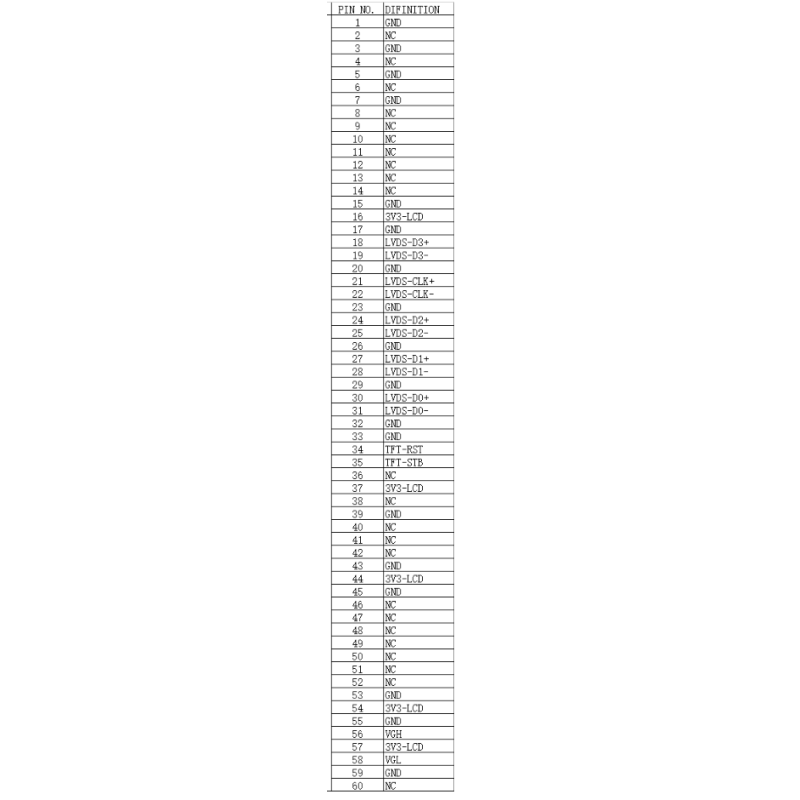

9.0" LCD 1280*720, 9.0 inch LVDS Landscape TFT LCD Drawing
