Product Specifications
| Specification |
Value |
| Number of pixels |
800×800 pixels |
| Active Area |
87.6×87.6mm |
| Module Outline |
94.9×96.95×2.2mm |
| Viewing Angle (CR>10) |
85/85/85/85 (Typ) |
| Display Mode |
Normally Black |
| NTSC |
70% (Typ) |
| Contrast Ratio |
1000 MIN, 1200 (Typ) |
| LCM Brightness |
350cd/m² (Typ) -- Adjustable |
| Interface |
MIPI |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
3.4 inch Round IPS LCD Display
Key Features
- High-resolution 800×800 pixel round display
- Wide viewing angles with 85° visibility in all directions
- Bright 350cd/m² adjustable backlight
- MIPI interface for reliable data transmission
- Wide operating temperature range for industrial applications
Product Introduction: 3.4-Inch Round TFT LCD Display with 800×800 Pixels for Automotive Applications
The JT-3.4IPSR is a 3.4-inch round TFT LCD display module offering a high resolution of 800×800 pixels. It delivers a brightness of 1000 cd/m² (nits, typical) and a contrast ratio of 1000:1 (typical). The LCD panel operates with a power supply voltage (VCC) ranging from 2.6V to 3.3V. This 3.4-inch IPS-type TFT display supports operating temperatures from -20 ℃ to +70 ℃, and can be stored in environments between -30 ℃ and +80 ℃.
This compact TFT LCD module is well-suited for a wide variety of applications, including:
1. Internet of Things (IoT) devices: Ideal for integration into smart home systems and industrial control systems.
2. Medical devices: Perfect for use in portable defibrillators, insulin pumps, and other medical monitoring and diagnostic equipment.
3. Industrial automation: Excellent for deployment in machine control, process control, and monitoring systems within industrial settings.
4. Gaming: A great choice for integration into handheld game consoles and other gaming applications.
These examples illustrate just some of the diverse potential uses of this 3.4-inch TFT display. The actual application will depend on the specific requirements of the product and the desired display features and performance.
Features:
1. This 3.4-inch TFT LCD display provides a round screen with 800×800 pixel resolution.
2. The module incorporates an JD9365DA-H3 driver IC and supports MIPI interface.
3. Power supply voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V.
4. The 3.4-inch circular LCD utilizes IPS technology for wide viewing angles up to 85/85/85/85.
5. The JT-3.4IPSR offers high brightness of 1000 nits.

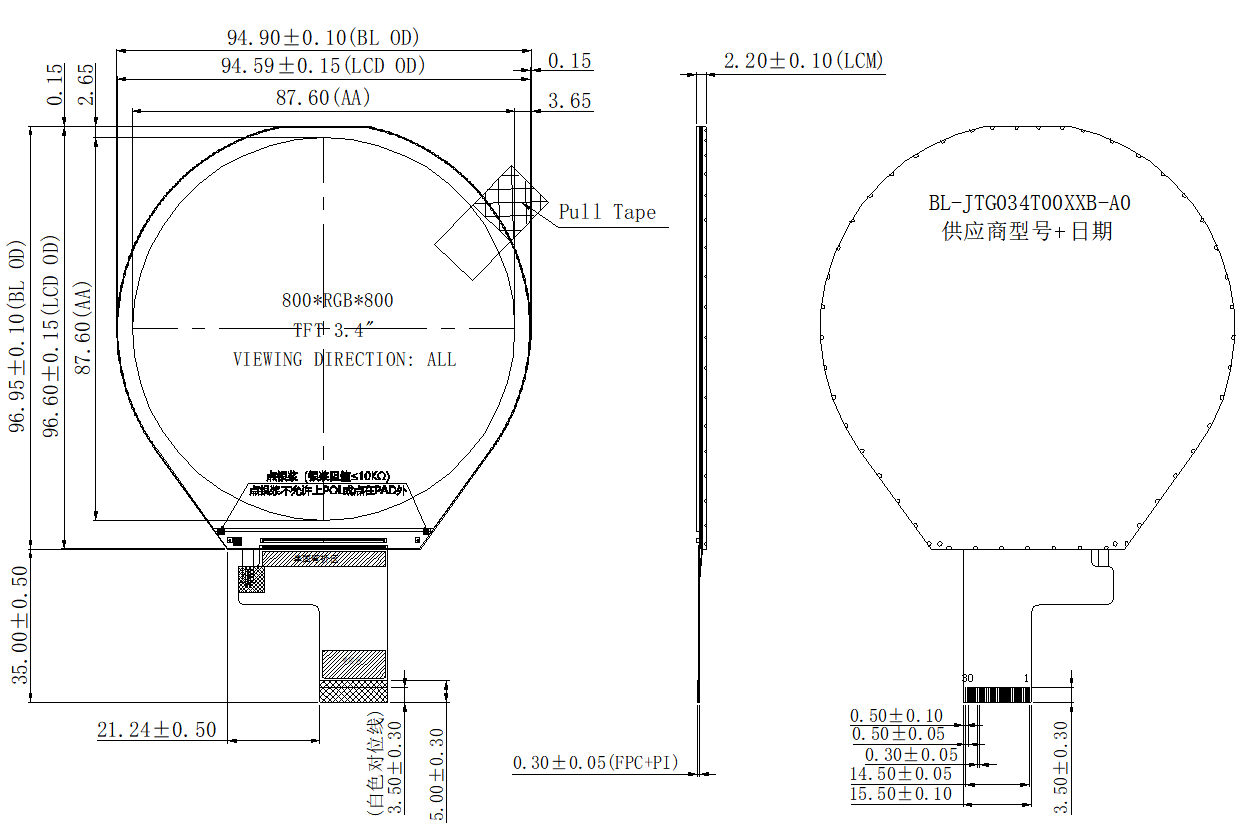

3.4" inch Rouch TFT Touch Screen LCD Drawing
Whether used in indoor or outdoor environments, this 3.4-inch TFT LCD display meets a wide range of visual requirements. It is a versatile and high-performance solution suitable for diverse applications.
