10.1 Inch TFT LCD Display Module 800x1280 500cd/M2 Luminance For High Brightness Tablet

  • 1
  • 2
  • 3

Brand Name : Jingtai

Model Number : JT-10.1IPSHDINCELL

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 5pcs

Price : 1-20

Payment Terms : T/T,Western Union,L/C,MoneyGram,D/P,D/A

Supply Ability : 2000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Key Words : 10.1 Inch IPS TFT LCD

Resolution : 800*1280

Display Mode : IPS Full Viewing Angle

Aspect Ratio : 16:10

Luminance : 500cd/m²(Typ)

Interface Definition : MIPI

Touch Screen : CTP

CTP Interface : 12C/SPI

Contact Now

10.1 Inch HD TFT LCD Display Screen with 800×1280 Resolution and 500cd/m² Luminance for Tablet
The JT-10.1IPSHDINCELL is a high-quality 10.1-inch MIPI interface TFT-LCD module featuring IPS technology and capacitive touch panel (CTP). This display offers exceptional clarity with 800×1280 resolution and wide viewing angles.
Key Specifications
Attribute Value
Key Words 10.1 Inch IPS TFT LCD
Resolution 800×1280
Display Mode IPS Full Viewing Angle
Aspect Ratio 16:10
Luminance 500cd/m²(Typ)
Interface Definition MIPI
Touch Screen CTP
CTP Interface I2C/SPI
Technical Details
Specification Value
Application Tablet
Number of pixels 800×1280 pixels
Active Area 216.58×135.36mm
Module Outline 143.0×228.6×2.52mm
Aspect Ratio 16:10
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80(Typ)
Contrast Ratio 1000MIN, 1500(Typ)
NTSC 60%(Typ)
LCM Brightness 500cd/m²(Typ)
Interface MIPI
Operating Temperature -20~+60℃
Storage Temperature -20~+70℃
Key Features
  • High-resolution 10.1 inch HD display with 800×1280 resolution
  • IPS technology for full viewing angles
  • Bright 500cd/m² luminance for clear visibility
  • MIPI interface for efficient data transfer
  • Capacitive touch panel (CTP) with I2C or SPI interface
  • Wide operating temperature range (-20~+60℃)
10.1-Inch CTP TFT Display, CTP TFT Display 800×1280, LED Backlight MIPI TFT Display, 10.1-Inch 800×1280 Dots TFT LCD IPS Wide Viewing Angle Display Module with MIPI Interface and LED Backlight, High-Brightness IPS 10.1-Inch MIPI TFT Display 800×1280 with CTP

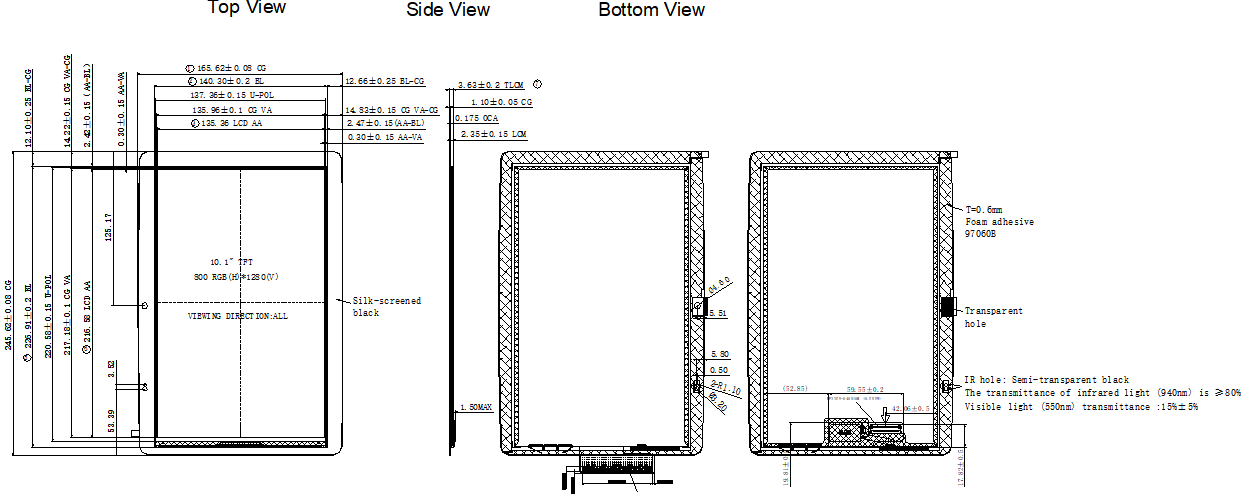

Tablet 10.1 inch 800×1280 TFT Touch Display Module Drawing
10.1 Inch TFT LCD Display Module 800x1280 500cd/M2 Luminance For High Brightness Tablet 10.1 Inch TFT LCD Display Module 800x1280 500cd/M2 Luminance For High Brightness Tablet 10.1 Inch TFT LCD Display Module 800x1280 500cd/M2 Luminance For High Brightness Tablet
This TFT module incorporates IPS technology, providing a wide viewing angle of 80°/80°/80°/80° (left/right/up/down, typical) and a typical brightness of 500 nits. For applications requiring higher brightness, custom options up to 1000 nits are available upon request.
