5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
Product Introduction
This 5.5 Inch IPS TFT LCD Display Module features a 720×1280 resolution and a compact portrait display format. Designed for Security Monitoring Systems and Embedded Display applications, the module combines IPS viewing technology with a MIPI interface to support clear information presentation in modern control terminals and monitoring equipment. Its slim structure makes it suitable for devices requiring space-efficient display integration.
Display Features
• 720×1280 resolution provides clear presentation of images, icons and operating information.
• IPS TFT LCD technology supports wide viewing angles for improved visibility from different positions.
• Normally Black display mode helps deliver stable visual performance.
• 72% NTSC color performance supports clear and balanced image display.
• Optional brightness configurations are available for different installation environments.
Integration Benefits
• MIPI Interface supports integration with compatible embedded platforms.
• Compact module dimensions help reduce installation space requirements.
• Suitable for products requiring portrait screen layouts and efficient information display.
• Operating temperature range from -20℃ to +70℃ supports use in various working environments.
• Designed for long-term integration into monitoring and control equipment.
Application Areas
• Suitable for Security Monitoring Systems that require clear status display and user interaction functions.
• Can be integrated into access control terminals, monitoring panels and security management devices.
• Applicable to Embedded Display equipment used for system control and information visualization.
• Suitable for intelligent monitoring products requiring compact dimensions and portrait screen layouts.
• Can be used in smart building management equipment and related security control applications.
The 5.5 Inch IPS TFT LCD Display Module combines a 720×1280 resolution, MIPI Interface connectivity and a compact structure, making it a practical display solution for Security Monitoring Systems, Embedded Display devices and intelligent control terminals requiring reliable visual performance.

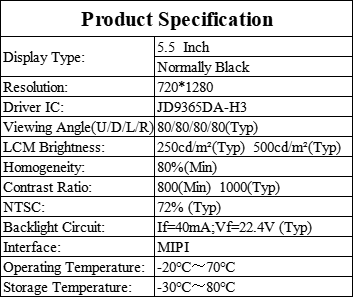

Product Specifications
|
Number Of Pixels
|
720 * 1280pixels
|
|
Active Area
|
68.04 * 120.96mm
|
|
Module Outline
|
70.24*127.9*1.44mm
|
|
Aspect Ratio
|
16:9
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
80/80/80/80
|
|
Contrast Ratio
|
800(Min) 1000 (Typ)
|
|
NTSC
|
72%Typ
|
|
LCM Brightness
|
250 cd/m²(Typ) 500 cd/m²(Typ)
|
|
Interface
|
MIPI
|
|
Operating Temperature
|
-20~+70℃
|
|
Storage Temperature
|
-30~+80℃
|
5.5 Inch IPS TFT LCD Display Module Drawing
